Tail-a-Gater Dump Truck Tailgate Air Cylinder
Product Description

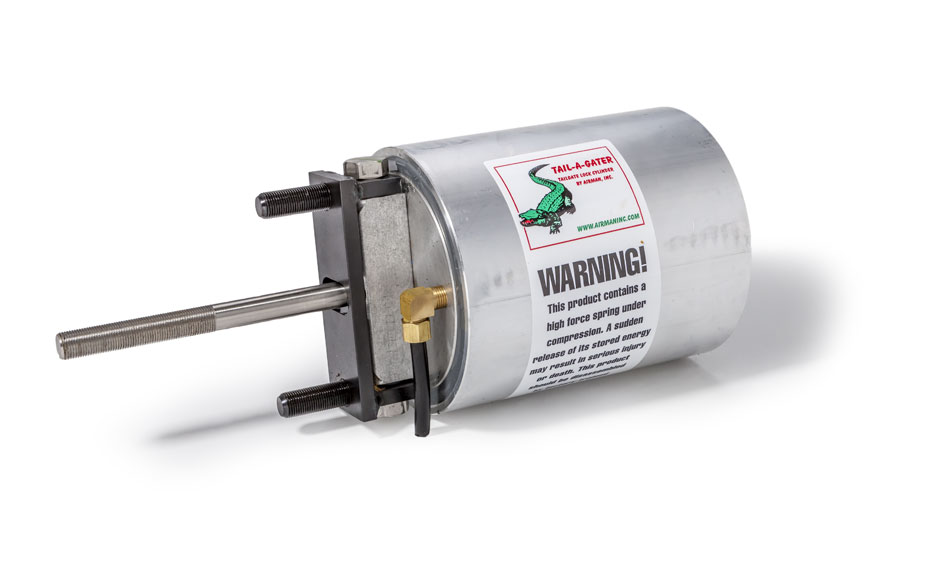

Dump truck tailgate air cylinder. Heavy duty aluminum thick wall tubing with pivoting trunnion flange.
| Model Number | Bore Size | Stroke | Rod Extension |
|---|---|---|---|
| B3000-259-H5 | 6.00 | 3.00 | 5.00 |
| B3000-259-H6.5 | 6.00 | 3.00 | 6.50 |
Benefits & Features
- Six inch diameter bore and piston
- Pivoting trunnion flange mount permits the cylinder to follow the connecting mechanism through the rotational movement to prevent extraordinary side loading and wear
- Compact construction and light weight material provide resistance to the harsh environmental conditions
- Rated to 150 psi
- Rated -40° to 180° F
