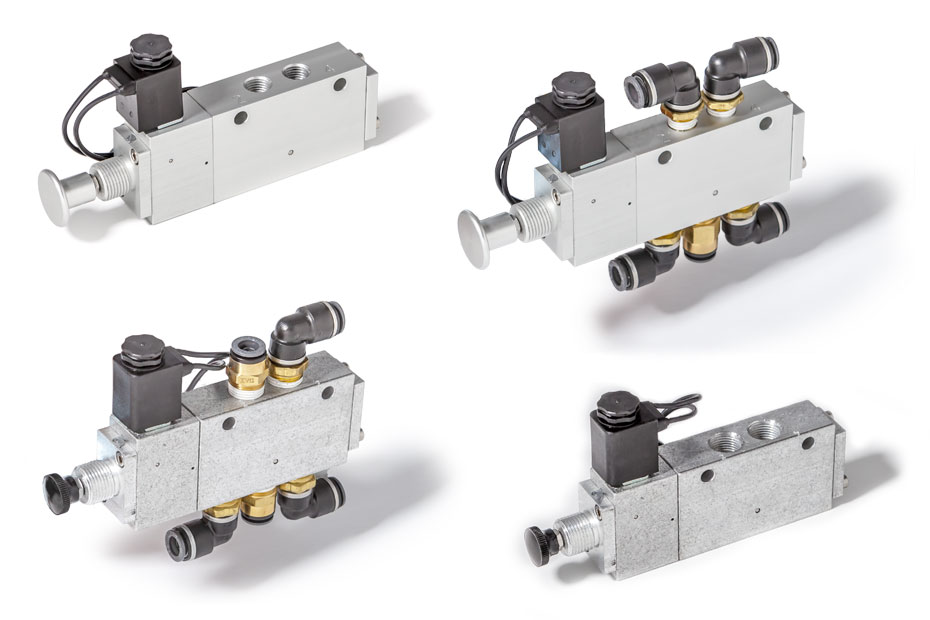

Combination Valve: Any Combination of Operators - Manual, Solenoid, Air Pilot

3-Way and 5-Way

Heavy duty combination valves designed for use in extreme operating conditions.

Model Number	Specifications
B2400-889-BLK	VALVE, .25 NPT, 3-2, PUSH-PULL, REMOTE RESET
V380E90512-DAL-BLK	VALVE, .38 NPT, 5-2, PUSH-PULL AND SOLENOID COMBINATION -SPRING RETURN, 12DC, MANUAL OVRD WITH EXTERNAL PILOT
V254010421-K12-BLK	VALVE, .25 NPT, 3-2, PUSH-PULL-AIR PILOT
V380110114-DAL-BLK	VALVE, .38 NPT, 5-2, SOLENOID-PUSH-PULL, 12DC
V38505E912-DAL-BLK	'VALVE, .38 NPT, 5-2, LONG BODY, PUSH-PULL SOLENOID COMBINATION - SPRING RETURN, MANUAL OVRD WITH EXTERNAL PILOT
V385050912-DAL-BLK	VALVE, .38 NPT, 5-2, LONG BODY, PUSH-PULL AND SOLENOID COMBINATION-SPRING RETURN, MANUAL OVRD WITH INTERNAL PILOT
B2400-B63	VALVE, .25 NPT, ASSY CARTRIDGE SLIDE PIN WITH REMOTE RESET WITH FITTINGS
B2400-B97	VALVE, .25 NPT, ASSY CARTRIDGE SLIDE PIN WITH REMOTE RESET WITH FITTINGS
B2400-B48	VALVE, .25 NPT, 3 WAY PILOT PUSH-PULL WITH REMOTE RESET
V38104S221-K11-BLK	VALVE, .38 NPT, 3-2, AIR PILOT-PUSH-PULL WITH DETENT
V250110114-DAL-BLK	VALVE, .25 NPT, 5-2, SOLENOID-PUSH-PULL, 12DC

Aircraft quality 6061 billet aluminum construction is anodized for a tough exterior finish
16 RMS bore finish, stainless steel knob extensions and fasteners withstand corrosive environments
All manual operated valve constructions have panel mount capability
Large push/pull knobs are easier to handle with heavy gloves
Tough Nitrile seals rated for -65℉ and work well in dirty airline conditions
Silicon-based "heavy transport lube" used to assemble AIRman valves; won't wash away because of airline condensation
Porting orifices are slotted and internally configured to provide maximum seal life
Lower power draw solenoids rated NEMA 4X include a lifetime guarantee against burnout
Option: Wide variety of operators to fit any mobile pneumatic application
