B2400-B73 Valve

airmanproducts.com B2400-B73

Purchase Inquiry

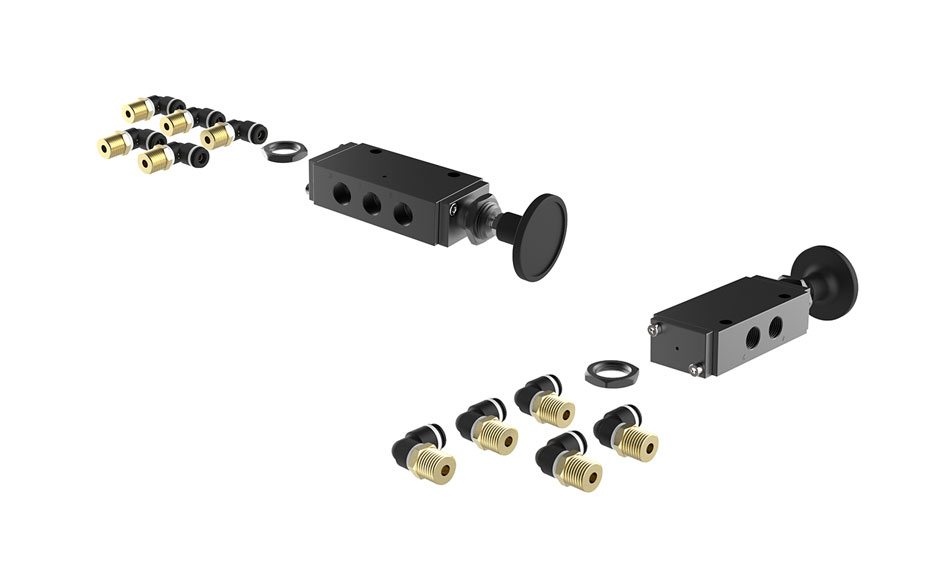

Description: .25 NPT, 5-2, Vented Cap-Push Pull With Detent With Fittings
Cross-Reference: Hendrickson S14179
Application: Tailgate Latching, Suspension Dump

Main Features

airmanproducts.com B2400-B73

Product Attributes & Drawings

Product Details

Product Print

3D Model - EASY
(Must download to view)

3D Model
(CAD system required)

Differentiation

Reliability and Robustness

  • AIRman product meets the widest range of temperature, chemical resistance, sludge and lifecycle performance

OEM Standards

  • AIRman has worked with the largest suspension manufacturers to meet their highest standards. (Often AIRman worked with OEMs to develop these standards.) See quality attributes on airmanproducts.com Product Validation Test Standards section.

Made in USA

  • AIRman Products are assembled in USA

Industry-Best Warranty

  • Airman provides a 24-month warranty, the best in the market.

Product Validation Test Standards

  • Lifecycle 350k -3M+ cycles depending on the application (min 10x worst case life)
  • Temperature -40C -180C -60 hour cycle
  • Salt Spray ASTM B-117-97 -5 -10 days
  • Vibration Resonance frequency - 1 M cycles @ 5Gs
  • Vibration Step Temp and cycle sweep up to 50 Gs
  • Chemical Resistance 48 hr Methanol assembly soak followed by 300k cycle;
    Additional direct seal soak -1 week
  • Sludge 350k cycles impingement, water and diesel oil mix
  • Dust ISO 12013 Arizona road dust
