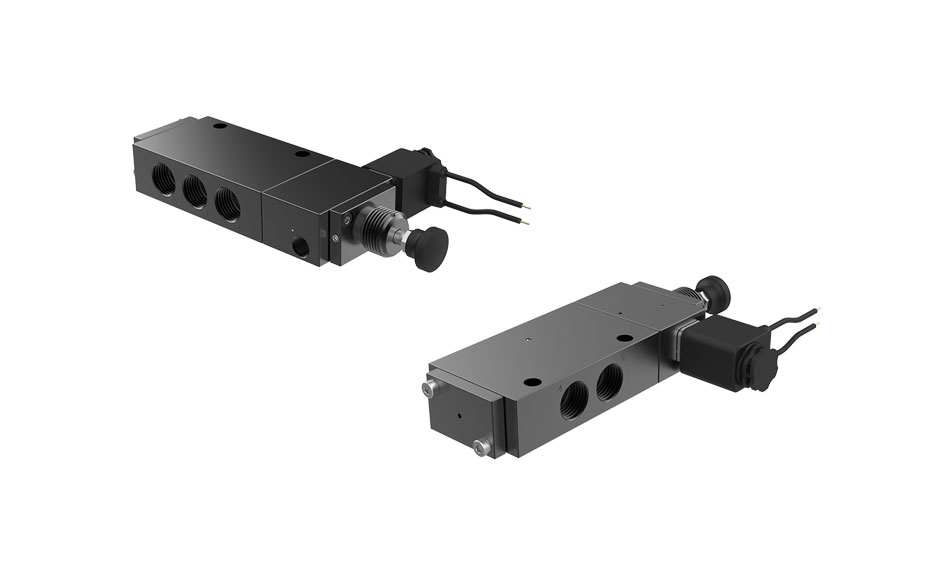

Description: Valve, .38 NPT, 5-2, Push Pull and Solenoid Combination -Spring Return, 12DC, Manual OVRD with External Pilot
Cross-Reference: AP-V38009E05-DA, K71EA00K56KVW, SP-4904, Velvac 320189, Tramec Sloan TD6362E, Automann 170.V44202
Application: Double Acting Cylinder, Lift Axle
Cross-Reference: AP-V38009E05-DA, K71EA00K56KVW, SP-4904, Velvac 320189, Tramec Sloan TD6362E, Automann 170.V44202
Application: Double Acting Cylinder, Lift Axle
Main Features
Product Attributes & Drawings
Differentiation
Reliability and Robustness
- AIRman product meets the widest range of temperature, chemical resistance, sludge and lifecycle performance
OEM Standards
- AIRman has worked with the largest suspension manufacturers to meet their highest standards. (Often AIRman worked with OEMs to develop these standards.) See quality attributes on airmanproducts.com Product Validation Test Standards section.
Made in USA
- AIRman Products are assembled in USA
Industry-Best Warranty
- Airman provides a 24-month warranty, the best in the market.
Product Validation Test Standards
- Lifecycle 350k -3M+ cycles depending on the application (min 10x worst case life)
- Temperature -40C -180C -60 hour cycle
- Salt Spray ASTM B-117-97 -5 -10 days
- Vibration Resonance frequency - 1 M cycles @ 5Gs
- Vibration Step Temp and cycle sweep up to 50 Gs
-
Chemical Resistance 48 hr Methanol assembly soak followed by 300k cycle;
Additional direct seal soak -1 week - Sludge 350k cycles impingement, water and diesel oil mix
- Dust ISO 12013 Arizona road dust
